Modificaties-versie-1-van-de-va-80m-dg

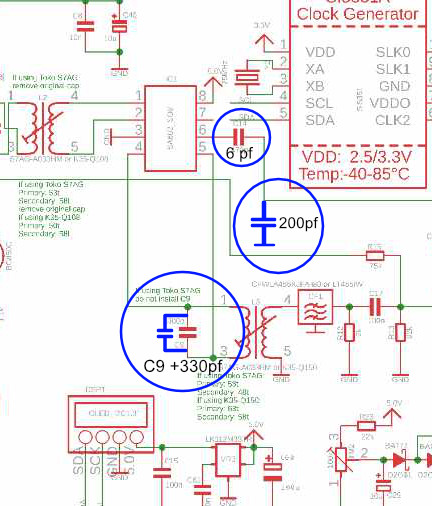

  • C14 – replace with 6pf
  • From C14 need to add 200pf capacitor to the ground (C29)
  • C9 add 330pf and tune coil (coil next to C9)

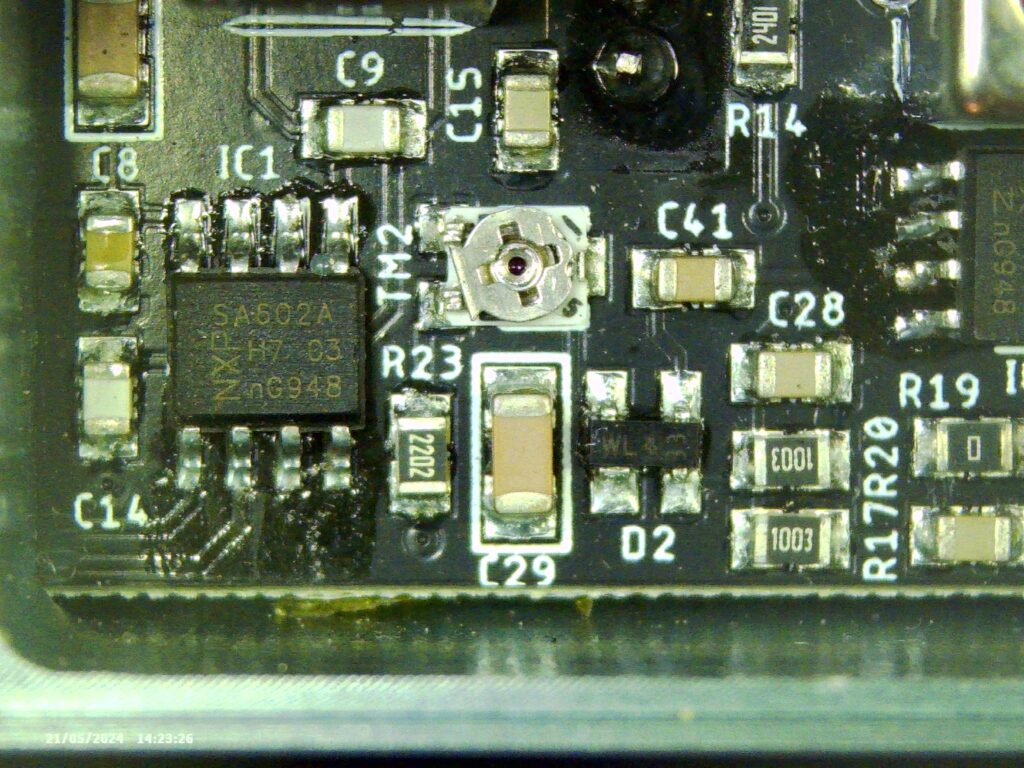

  • close-up without modifications

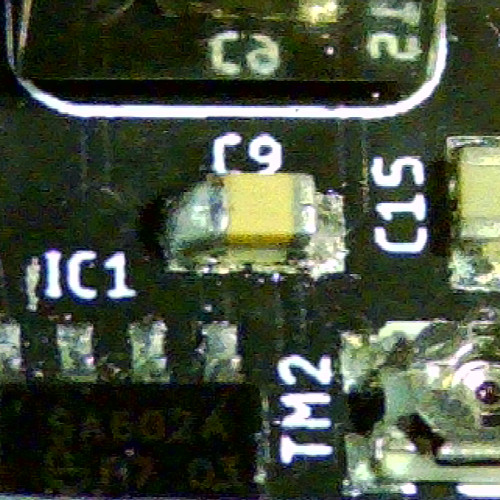

  • C9 add 330pf

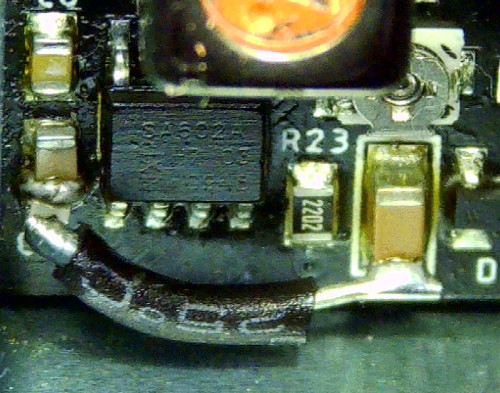

  • From C14 need to add 200pf capacitor to the ground (C29)
